Nom Voltage(V) 12
Nom Capacity (AH) 20/10/5hr rate 12/12/10.2
Weight 9.39 (4270mm)
Length 5.94" (151mm)
Width 3.90" (99mm)
Height 3.74" (95mm)
Terminal Height 3.94" (100mm)

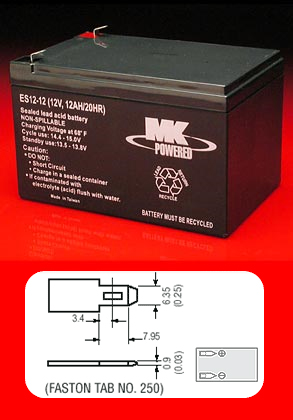

Terminal Type / Position F2 / 5
Max discharge current (A) 5 sec 60
Ambient Temp Charge 32°F - 104°F
Discharge -4°F - 122°F
Storage -4°F - 104°F
Max Charge Current 3.6
Replaces:
- APC Network Powercell BD (BP12-12T2)
- BackUPS 1000 (BP12-12)
- BackUPS 1400 (BP12-12T2)
- BackUPS 650 - 1 battery version (BP12-12T2)
- BackUPS 650 Pro (BP12-12T2)
- BackUPS 650M (BP12-12T2)
- BackUPS 650MC (BP12-12T2)
- BackUPS 650SC (BP12-12T2)
- BackUPS 650X06 (BP12-12T2)
- BackUPS BK1000 (BP12-12T2)
- BackUPS BK650 (BP12-12T2)
- BackUPS BK650MC (BP12-12T2)
- BackUPS BK650MUC (BP12-12T2)
- BackUPS BK650X06 (BP12-12T2)
- BackUPS LS BP650S (BP12-12T2)
- BackUPS PRO 1000 (BP12-12T2)
- BackUPS PRO 650 (BP12-12T2)
- BackUPS PRO 650PNP (BP12-12T2)
- BackUPS PRO 650S (BP12-12T2)
- BackUPS PRO BP1000 (BP12-12T2)
- BackUPS PRO BP650IPNP (BP12-12T2)
- BackUPS PRO BP650PNP (BP12-12T2)
- BackUPS PRO BP650S (BP12-12T2)
- BackUPS PRO BP650SUS (BP12-12T2)
- BackUPS VS SUVS1000 (BP12-12T2)
- BackUPS VS SUVS650 (BP12-12T2)
- SmartUPS 1000 (BP12-12)
- SmartUPS 1000BX120 (BP12-12)
- SmartUPS 1000NET (BP12-12)
- SmartUPS 1000RM (BP12-12)
- SmartUPS 620NET (BP12-12)
- SmartUPS 650 (BP12-12)
- SmartUPS RM SU1000RM (BP12-12)
- SmartUPS RM SU1000RMNET (BP12-12)
- SmartUPS SU1000 (BP12-12)
- SmartUPS SU1000 RACK (BP12-12)
- SmartUPS SU1000BX120 (BP12-12)
- SmartUPS SU1000NET (BP12-12)
- SmartUPS SU1000X127 (BP12-12)
- SmartUPS SU1000X93 (BP12-12)
- SmartUPS SU620NET (BP12-12)
- SmartUPS SU650 (BP12-12)
- SmartUPS SUA1000 (BP12-12)
- SmartUPS SUVS1000 (BP12-12)
- SmartUPS SUVS650 (BP12-12)
- SmartUPS VS1000 (BP12-12)
- SmartUPS VS650 (BP12-12)
